Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | HG/T2184 |
| Model Number: | JY10 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 200 Meter/Meters |
| Price: | $2.90 - $15.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 200 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Temp. Range: | -40℃~+ 120℃ | Material: | EPDM |
|---|---|---|---|
| Size: | 1/2"~3" | Length: | 100m/60/40 Per Roll |
| High Light: | 100m/Roll Epdm Water Hose,100m/Roll Epdm Coolant Hose,10KV Epdm Coolant Hose |
||
Product Description

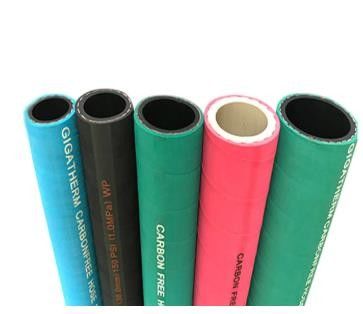

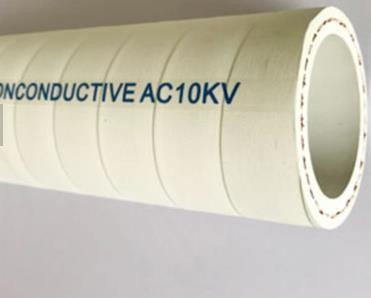

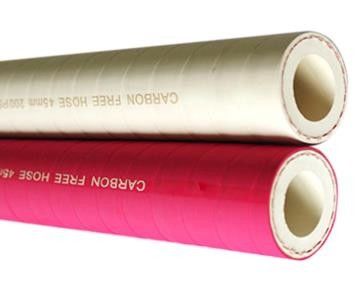

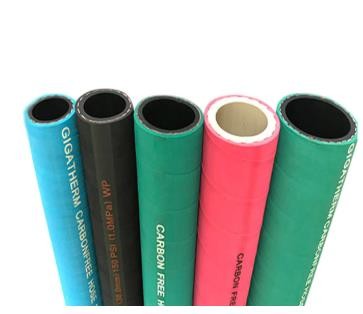

Water cooling system hose - carbon free hose for voltage of 10 KV
Applications:
It is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage of 10KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.
Construction:
Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: white or green, pure carbon - free, high - insulation EPDM synthetic rubber. Smooth for ID≤1", fabric impression for ID>1”.
Electrical resistance: high insulation, excellent low leakage current. At 10KV DC/AC voltage, the leakage current is less than 20 Micro Amp.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Weight | Length | |
| inch | mm | mm | mm | PSI | PSI | kg/m | m | |
| JY10013 | 1/2" | 12.7 | 22.0 | 100 | 300 | 1200 | 0.31 | 100 |
| JY10016 | 5/8" | 15.9 | 25.0 | 120 | 300 | 1200 | 0.35 | 60 |
| JY10019 | 3/4" | 19.0 | 29.0 | 150 | 300 | 1200 | 0.46 | 60 |
| JY10022 | 7/8" | 22.2 | 33.0 | 170 | 300 | 1200 | 0.58 | 60 |
| JY10025 | 1" | 25.4 | 38.0 | 200 | 300 | 1200 | 0.76 | 60 |
| JY10032 | 1-1/4" | 31.8 | 50.0 | 250 | 250 | 1000 | 1.1 | 40 |
| JY10038 | 1-1/2" | 38.1 | 56.0 | 300 | 250 | 1000 | 1.38 | 40 |
| JY10042 | 42mm | 42.0 | 60.0 | 336 | 250 | 1000 | 1.46 | 40 |
| JY10045 | 45mm | 44.5 | 62.5 | 360 | 250 | 1000 | 1.6 | 40 |
| JY10050 | 2" | 50.8 | 68.8 | 400 | 250 | 1000 | 1.9 | 40 |
| JY10063 | 2-1/2" | 63.5 | 81.5 | 500 | 200 | 800 | 2.5 | 40 |
| JY10076 | 3" | 76.2 | 94.2 | 600 | 150 | 600 | 3.2 | 40 |
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factories in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
