Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA ， SGS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Piece/Pieces (Min. Order) |
| Price: | $199.00 / Piece |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Pieces) 1 - 10 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000.0 Piece/Pieces per Week |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops |
|---|---|---|---|
| After Warranty Service: | Online Support | Warranty: | 1 YEAR |
| After-sales Service: | Online Support | ||
| High Light: | 2.0MPa Stainless Steel Wine Filter,2.0MPa Stainless Steel water Filter,SS316L Stainless Steel Wine Filter |
||
Product Description

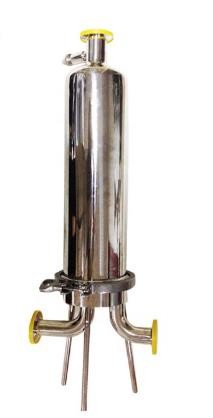

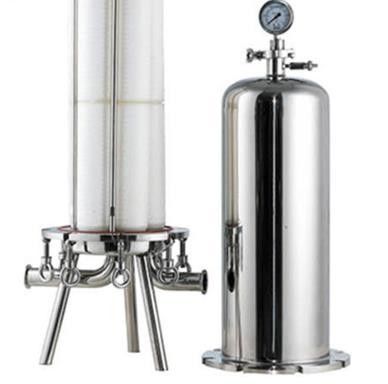

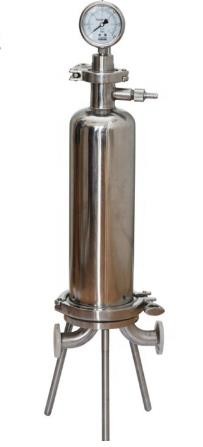

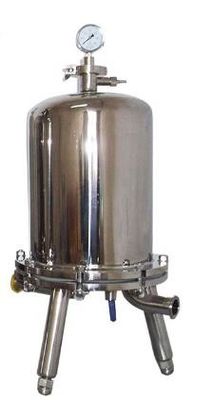

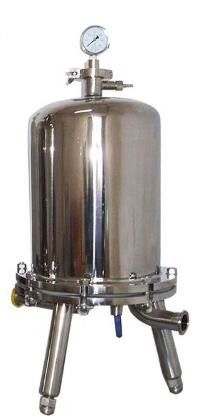

Stainless steel microporous filter
Product overview
Stainless steel microporous filter for the aseptic liquid filtration and fine filtration, all materials in contact with the material liquid by SS316 or SS304 stainless steel materials manufacturing, and mechanical and electrolytic polishing, can provide excellent durability and biggest pit corrosion resistance. Structure without health dead Angle, the filter drain valve, relief valve, imported material liquid and filter plugs are easy to clean, can be completely sterilized health, drain thoroughly, no residual liquid.
Technical parameters
Import and export: flange, Tri-clamp, welding
Pressure gauge interface: DN38 Tri-clamp
Cylinder connection: flange, Tri-clamp
Filter port: plug in 222, in 226, 215, 220, M30
Operating conditions
Sterilization: 121℃/30Min
Clamp and bolt: SS304
Filter specifications: 5”, 10”, 20”, 30”, 40”
Filtration precision: 0.05um,0.1um,0.22um,0.45um,1.0um,5um
The maximum operating pressure: 0-2.0MPa
The filter shell: SS316L, SS304
Cylinder seals
Silicone rubber, fluorine rubber, epdm rubber, PTFE
Surface polishing
Mechanical or electrolytic polishing, casing surfaceRa<0.4um
filter element
PP,PTFE,PSE,CA
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
