Detail Information |
|||
| Material: | Silicone | Color: | White |
|---|---|---|---|
| Size: | 3/16"~1-1/4" | Length: | 50m/roll |
| Temp. Range: | -60℃~200℃ | Processing Service: | Moulding, Cutting |
| Highlight: | 50m/Roll Braid Reinforced Silicone Hose,50m/Roll 3/16 Id Silicone Tubing,50m/Roll polyester reinforced silicone hose |
||
Product Description

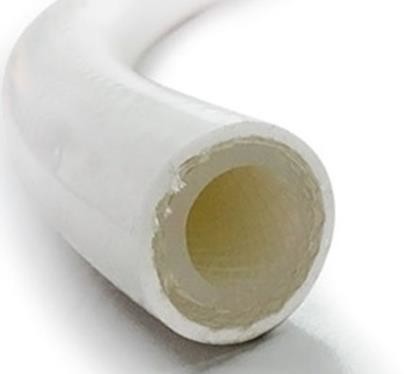

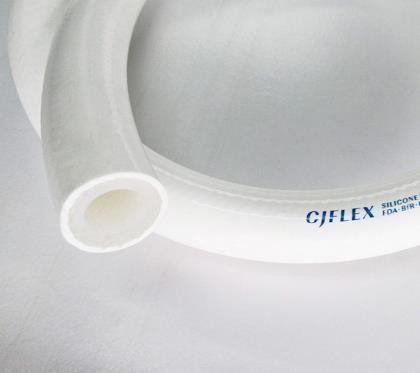

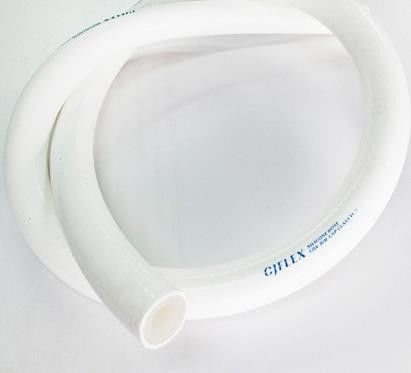

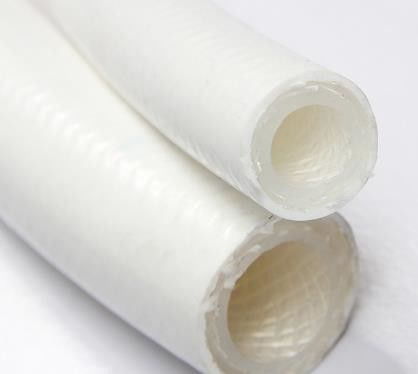

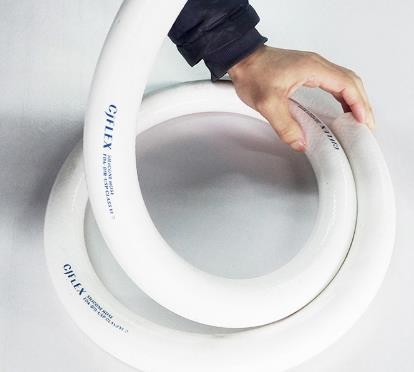

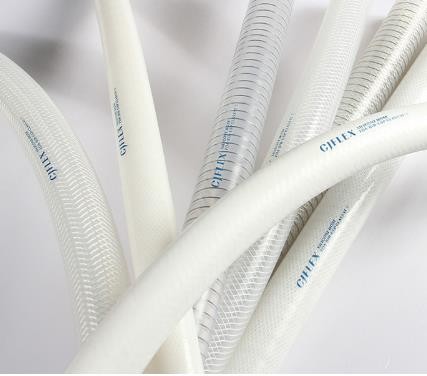

Double polyester Fiber Braid Reinforced Silicone Hose
Construction: Type PDF is manufactured from High purity platinum cured Silicone with double polyester fiber reinforcement.
Temp. Range: -60°C and 200°C.
Colour: White (Coloured covers available)
Applications: For transporting liquids at high pressure. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 20 meters, for a longer length, please contact us.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Vacuum | |
| in. | mm | mm | mm | bar | bar | bar | |
| PDF005 | 3/16" | 4.8 | 13 | 27 | 25 | 75 | 0.91 |
| PDF006 | 1/4" | 6.4 | 16 | 30 | 24 | 72 | 0.91 |
| PDF008 | 5/16" | 7.9 | 18 | 37 | 23 | 69 | 0.91 |
| PDF010 | 3/8" | 9.5 | 20 | 45 | 22.5 | 67.5 | 0.85 |
| PDF013 | 1/2" | 12.7 | 23 | 51 | 20 | 60 | 0.83 |
| PDF016 | 5/8" | 15.9 | 27 | 62 | 18 | 54 | 0.81 |
| PDF019 | 3/4" | 19 | 30.5 | 76 | 16.5 | 49.5 | 0.72 |
| PDF022 | 7/8" | 22 | 33 | 100 | 14 | 42 | 0.45 |
| PDF025 | 1" | 25.4 | 38 | 118 | 12.5 | 37.5 | 0.35 |
| PDF032 | 1-1/4" | 32 | 46 | 180 | 10 | 30 | 0.14 |
