Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NL |
| Certification: | Standard |
| Model Number: | PL90ETC-B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Piece/Pieces (Min. Order) |
| Price: | $59.00 - $350.00 / Piece |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Pieces) 1 - 20 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Piece/Pieces per Week |
|
Detail Information |
|||
| Type: | Elbow | Pipe Size: | 1"-4" |
|---|---|---|---|
| Material: | SS304+PFA | Technics: | Forged |
| Connection: | Clamp | Shape: | Equal |
| Head Code: | Round | Fitting Standard: | 3A |
| Remark: | Can Be Customized | ||
| Highlight: | SS304 PFA Pipe Fittings,SS304 Tri Clamp Fittings |
||
Product Description

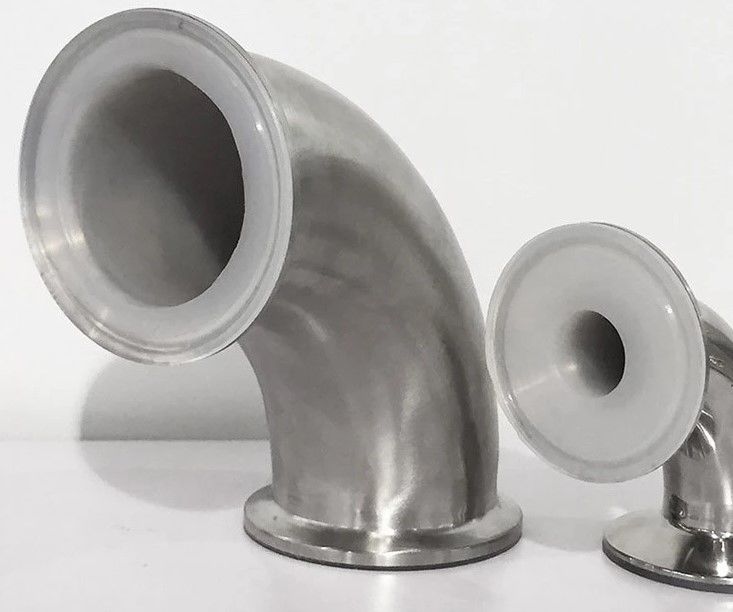

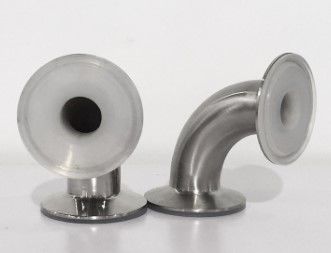

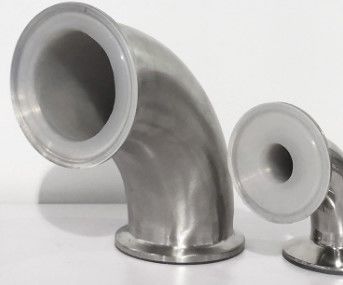

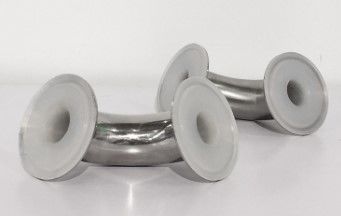

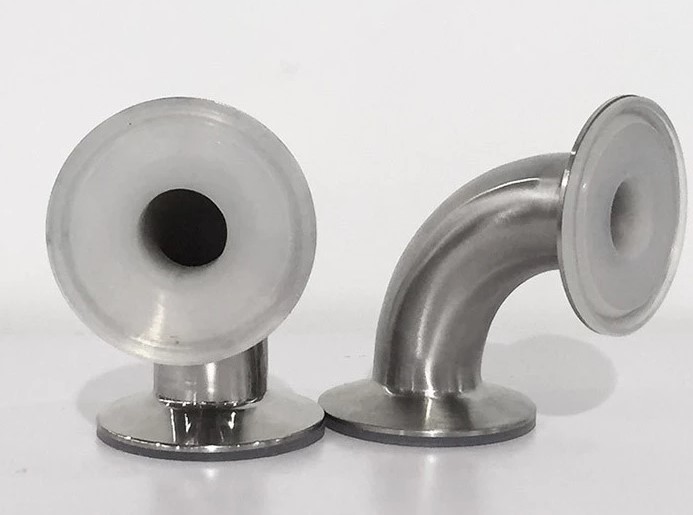

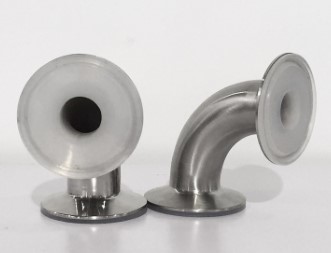

PFA lined 90 degree elbow with tri-clamp fitting
Fitting standard: 3A.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.
Remark: Can be customized.
| Part no. | Fitting material | Size | A(mm) | R(mm) | L(mm) |
| PL90ETC025S4 | SS304+PFA | 1" | 50.5 | 38.1 | 50.8 |
| PL90ETC040S4 | SS304+PFA | 1-1/2" | 50.5 | 57.2 | 69.9 |
| PL90ETC050S4 | SS304+PFA | 2" | 64 | 76.2 | 88.9 |
| PL90ETC065S4 | SS304+PFA | 2-1/2" | 77.5 | 95.25 | 107.95 |
| PL90ETC080S4 | SS304+PFA | 3" | 91 | 114.3 | 127 |
| PL90ETC100S4 | SS304+PFA | 4" | 106 | 152.4 | 168.2 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
