Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NL |
| Certification: | Standard |
| Model Number: | PLDL02 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 20 Piece/Pieces (Min. Order) |
| Price: | $88.00 - $318.00 / Piece |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Pieces) 1 - 20 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Piece/Pieces per Week |
|
Detail Information |
|||
| Type: | Flange To Coupling | Pipe Size: | 3/4" - 4" |
|---|---|---|---|
| Material: | SS304+PFA | Technics: | Forged And Casting |
| Connection: | Flange | Shape: | Equal |
| Head Code: | Round | Fitting Standard: | A-A-59326/DIN 2828 |
| Remark: | Can Be Customized | ||
| Highlight: | A-A-59326 PTFE Lined Pipe Fittings,A-A-59326 Female Cam Lock |
||
Product Description

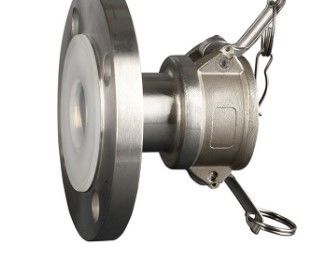

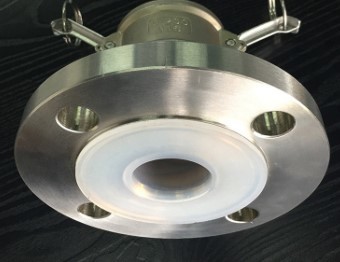

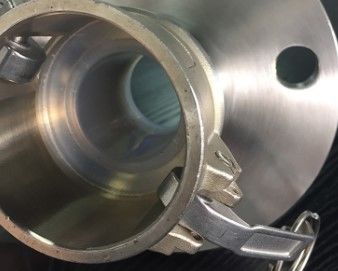

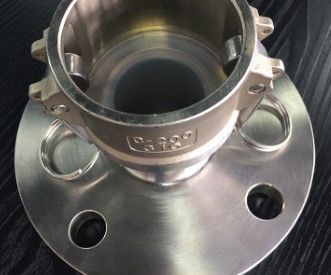

PFA lined Female Camlocks with fixed flange special hose adapter fittings
Camlock standard: A-A-59326/DIN 2828
FEP or PTFE liners are available.
Virgin and anti-static liners are available.
Remark: Can be customized.

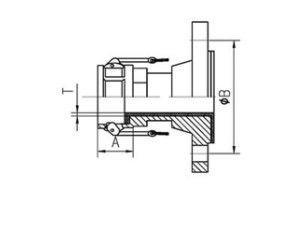

| Part no. | Fitting material | Size | Flange standard | D±0.1 | D2 min |
| mm | mm | ||||
| PLDL019S4 | SS304+PFA | 3/4" | EN PN16 | 32.4 | 90.0 |
| PLDL025S4 | SS304+PFA | 1" | EN PN16 | 37.3 | 96.0 |
| PLDL032S4 | SS304+PFA | 1-1/4" | EN PN16 | 46.0 | 111.0 |
| PLDL038S4 | SS304+PFA | 1-1/2" | EN PN16 | 54.0 | 115.0 |
| PLDL050S4 | SS304+PFA | 2" | EN PN16 | 63.8 | 122.0 |
| PLDL063S4 | SS304+PFA | 2-1/2" | EN PN16 | 76.5 | 125.0 |
| PLDL076S4 | SS304+PFA | 3" | EN PN16 | 92.2 | 132.0 |
| PLDL102S4 | SS304+PFA | 4" | EN PN16 | 120.3 | 137.0 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
