Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TSPO |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Meter/Meters (Min. Order) |
| Price: | $25.00 - $130.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -50 Est. Time(days) 7 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | Silicone | Color: | White |
|---|---|---|---|
| Size: | 3/16"~1-1/4" | Length: | 6m Or 10m/roll |
| Thickness: | 4.8mm~32mm | Temp. Range: | -60℃~180℃ |
| Processing Service: | Moulding, Cutting | ||
| High Light: | 10m/Roll Food Safe Silicone Tubing,10m/Roll 5/16 id silicone tubing,5/16 Id Food Safe Silicone Tubing |
||
Product Description

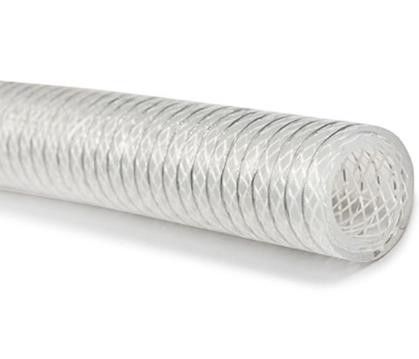

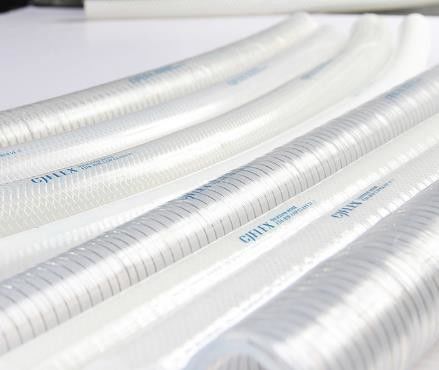

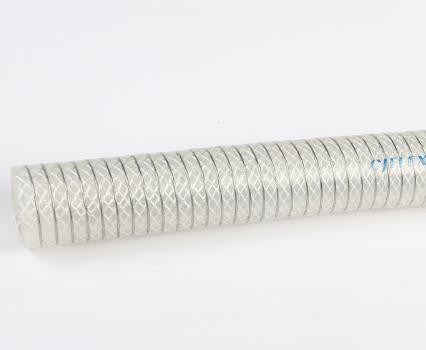

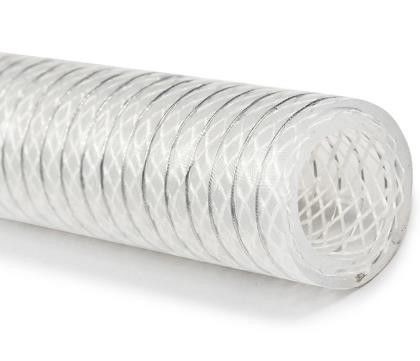

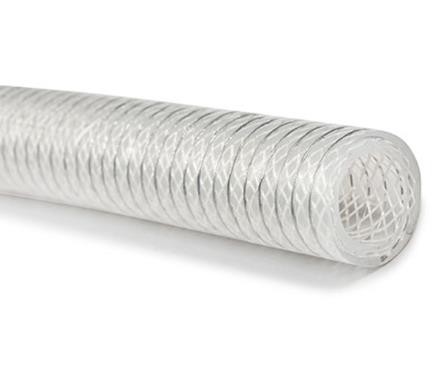

Transparent Stainless Steel Helix and Polyester Fiber Braid Reinforced Silicone Hose
Construction: Type TSPO is manufactured from High purity platinum cured Silicone with single stainless steel helix and polyester fiber reinforcement.
Temp. Range: -60°C and 180°C. (+260°C on request)
Colour: Transparent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 6 or 10 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Vacuum | |
| in. | mm | mm | mm | bar | bar | bar | |
| TSPO005 | 3/16" | 4.8 | 11 | 25 | 18 | 54 | 0.91 |
| TSPO006 | 1/4" | 6.4 | 13 | 38 | 17 | 51 | 0.91 |
| TSPO008 | 5/16" | 7.9 | 15 | 45 | 15 | 45 | 0.91 |
| TSPO010 | 3/8" | 9.5 | 17 | 57 | 14 | 42 | 0.91 |
| TSPO013 | 1/2" | 12.7 | 22 | 70 | 11 | 33 | 0.91 |
| TSPO016 | 5/8" | 15.9 | 25 | 80 | 10 | 30 | 0.91 |
| TSPO019 | 3/4" | 19 | 31 | 95 | 7 | 21 | 0.91 |
| TSPO022 | 7/8" | 22 | 34.5 | 145 | 6.5 | 19.5 | 0.91 |
| TSPO025 | 1" | 25.4 | 38 | 160 | 6 | 18 | 0.91 |
| TSPO032 | 1-1/4" | 32 | 46 | 200 | 5 | 15 | 0.91 |
