Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NL |
| Certification: | Standard |
| Model Number: | Type C |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Piece/Pieces (Min. Order) |
| Price: | $44.89 - $199.73 / Piece |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. Selling Units: Single item Single package size: 20X20X20 cm Single gross weight: 2.000 kg |
| Delivery Time: | Quantity(Pieces) 1 - 20 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Piece/Pieces per Week |
|
Detail Information |
|||
| Type: | Coupling | Pipe Size: | 3/4"1"1-1/4"1-1/2"2"2-1/2"3"4" |
|---|---|---|---|
| Material: | SS316+PFA | Technics: | Casting |
| Connection: | Female | Shape: | Equal |
| Head Code: | Round | Fitting Standard: | A-A-59326/DIN 2828 |
| Remark: | Can Be Customized | ||
| High Light: | PFA Lined 4 Inch Female Camlock Fittings,Type C 4 Inch Female Camlock Fittings,PFA Lined Camlock Quick Couplings |
||
Product Description

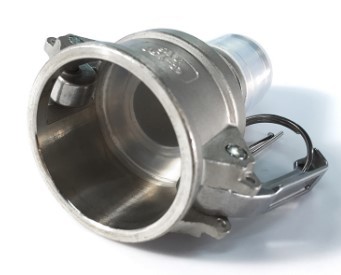

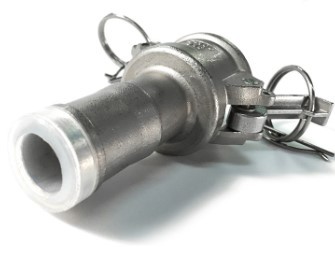

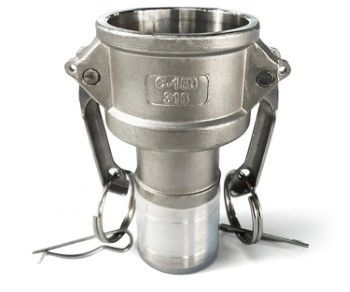

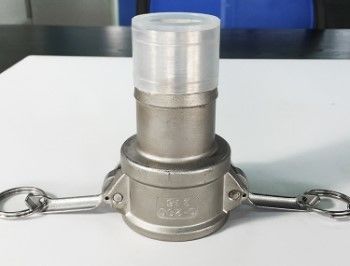

PFA lined Camlock-C
Fitting standard: A-A-59326/DIN 2828
Assembly: safety clamp
FEP or PTFE liners are available.
Virgin and anti-static liners are available.
Remark: Can be customized.
| Part no. | Fitting material | Size | For hose | D±0.1 | D2 min | D3 min |
| mm | mm | |||||
| PLC019S6 | SS316+PFA | 3/4" | 19 | 32.4 | 76 | 34 |
| PLC025S6 | SS316+PFA | 1" | 25 | 37.3 | 82 | 34 |
| PLC032S6 | SS316+PFA | 1-1/4" | 32 | 46 | 88 | 34 |
| PLC038S6 | SS316+PFA | 1-1/2" | 38 | 54 | 90 | 34 |
| PLC050S6 | SS316+PFA | 2" | 50 | 63.8 | 103 | 40 |
| PLC063S6 | SS316+PFA | 2-1/2" | 63 | 76.5 | 119.5 | 52 |
| PLC075S6 | SS316+PFA | 3" | 75 | 92.2 | 125 | 56 |
| PLC100S6 | SS316+PFA | 4" | 100 | 120.3 | 169.5 | 80.5 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
