Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TSSSI |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Meter/Meters (Min. Order) |
| Price: | $19.50 - $159.50 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -100 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | PTFE | Size: | 3/16"~1" |
|---|---|---|---|
| Length: | 20~200m/roll | Thickness: | 0.75~1.05mm |
| Processing Service: | Cutting, Assembly | Temp. Range: | -70℃~ 260℃ |
| High Light: | 25.4mm ID Lined Hose,Lined Hose 1.00mm Wall Thickness,25.4mm ID braided hose |
||
Product Description

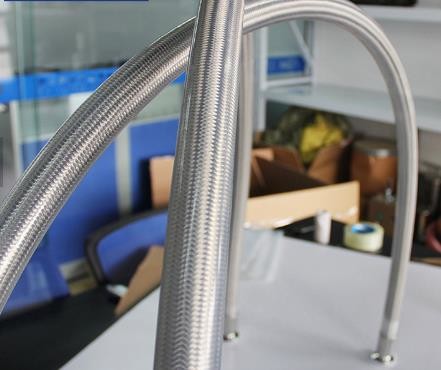

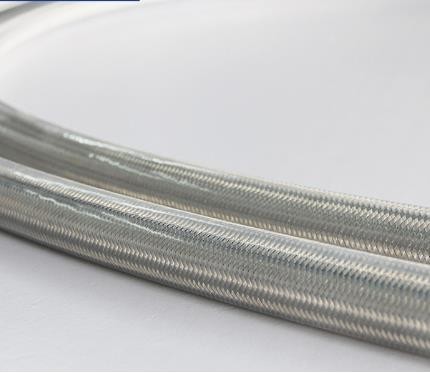

Transparent Silicone Cover Stainless Steel Braided Cover Convoluted PTFE Hose
Construction:
Type TCSSI is manufactured from convoluted PTFE tube with stainless steel over braid and transparent silicone cover.
Temp. Range: -70℃~ 260℃.
Applications:
For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling. It's the best acid resistant hose.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA.
We also can provide Type PCSSI (convoluted PFA tube).
| Part no. | ID | Mini OD | Tube Wall thickness | Bending | Work pressure | Bursting pressure | |
| radius | |||||||
| in. | mm | mm | mm | mm | bar | bar | |
| TCSSI010 | 3/8" | 9.5 | 18.1 | 0.75 | 25 | 110 | 440 |
| TCSSI013 | 1/2" | 12.7 | 21.1 | 0.75 | 35 | 100 | 400 |
| TCSSI016 | 5/8" | 15.9 | 26.9 | 0.75 | 65 | 85 | 340 |
| TCSSI019 | 3/4" | 19 | 30.4 | 0.90 | 65 | 80 | 320 |
| TCSSI025 | 1" | 25.4 | 38.4 | 1.00 | 75 | 60 | 240 |
| TCSSI032 | 1-1/4" | 32 | 50.1 | 1.00 | 100 | 45 | 180 |
| TCSSI038 | 1-1/2" | 38 | 55.4 | 1.00 | 140 | 35 | 140 |
| TCSSI051 | 2" | 50.8 | 68.9 | 1.10 | 180 | 25 | 100 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
