Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA,USP,BfR,ISO |
| Model Number: | TCAS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 Meter/Meters (Min. Order) |
| Price: | $19.00 - $119.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -50 Est. Time(days) 7 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Meter/Meters per Week |
|
Detail Information |
|||
| Processing Service: | Moulding, Cutting | Temp. Range: | -70℃~ 260℃ |
|---|---|---|---|
| High Light: | ID9.5mm Lined Hose,ID9.5mm Ptfe Braided Hose,0.9mm Thick Ptfe Braided Hose |
||
Product Description
Type TCAS

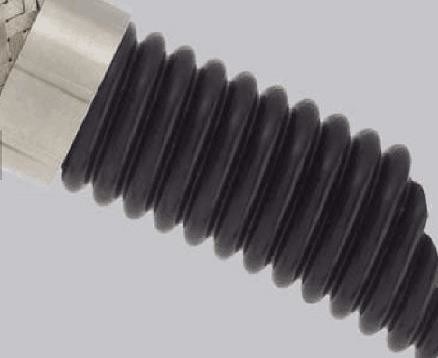

Stainless Steel Braid Cover Convoluted Anti-static PTFE Tube
Construction: Type TCAS is manufactured from convoluted anti-static PTFE tube with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA
| Part no. | ID | OD | Wall thickness | Bending Radius | Working pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCAS010 | 3/8" | 9.5 | 15.7 | 0.75 | 25 | 110 | 440 |
| TCAS013 | 1/2" | 12.7 | 18.7 | 0.75 | 35 | 100 | 400 |
| TCAS016 | 5/8" | 15.9 | 22.5 | 0.75 | 65 | 85 | 340 |
| TCAS019 | 3/4" | 19 | 26 | 0.9 | 65 | 80 | 320 |
| TCAS025 | 1" | 25.4 | 32 | 1 | 75 | 60 | 240 |
| TCAS032 | 1-1/4" | 32 | 42.7 | 1 | 100 | 45 | 180 |
| TCAS038 | 1-1/2" | 38 | 48 | 1 | 140 | 35 | 140 |
| TCAS051 | 2" | 50.8 | 61.5 | 1.1 | 180 | 25 | 100 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
