Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TCGS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 Meter/Meters (Min. Order) |
| Price: | $22.50 - $99.50 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -100 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | PTFE | Size: | 3/8"~2" |
|---|---|---|---|
| Length: | 20~200m/roll | Thickness: | 0.75~1.10mm |
| Processing Service: | Cutting, Assembly | Temp. Range: | -70℃~ 260℃ |
| High Light: | Ptfe Lined Fuel Hose 61.7mm OD,50.8mm Id Ptfe Lined Fuel Hose,50.8mm Id fuel hose |
||
Product Description

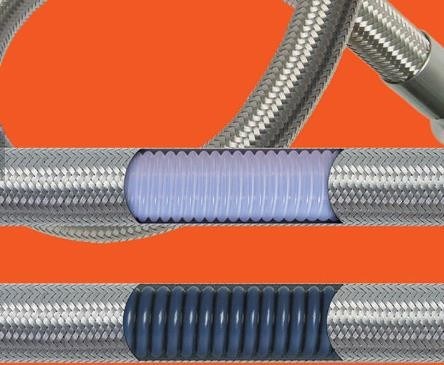

Stainless Steel Braid Cover Convoluted PTFE Tube(glass fiber reinforced)

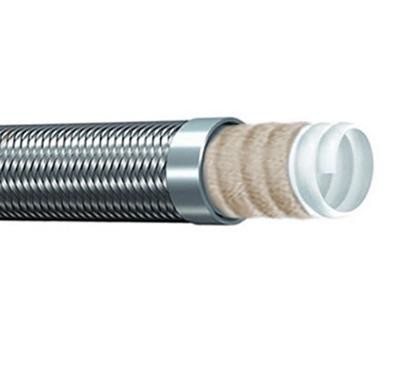

Construction: Type TCGS is manufactured from convoluted PTFE tube, glass fiber reinforced, with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on.
Virgin and anti-static liners are available.
Certification: FDA
| Part no. | ID | OD | Tube Wall thickness | Bending radius |
Work pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCGS010 | 3/8" | 9.5 | 15.9 | 0.75 | 20 | 110 | 440 |
| TCGS013 | 1/2" | 12.7 | 18.9 | 0.75 | 30 | 100 | 400 |
| TCGS016 | 5/8" | 15.9 | 22.7 | 0.75 | 60 | 85 | 340 |
| TCGS019 | 3/4" | 19 | 26.2 | 0.90 | 60 | 80 | 320 |
| TCGS025 | 1" | 25.4 | 32.2 | 1.00 | 70 | 60 | 240 |
| TCGS032 | 1-1/4" | 32 | 42.9 | 1.00 | 95 | 45 | 180 |
| TCGS038 | 1-1/2" | 38 | 48.2 | 1.00 | 130 | 35 | 140 |
| TCGS051 | 2" | 50.8 | 61.7 | 1.10 | 170 | 25 | 100 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
