Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TCWSR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Meter/Meters (Min. Order) |
| Price: | $39.50 - $259.50 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -20 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | PTFE | Size: | 3/8"~2" |
|---|---|---|---|
| Length: | 20~200m/roll | Thickness: | 0.75~1.05mm |
| Processing Service: | Moulding, Cutting | Temp. Range: | -40℃~ 150℃ |
| High Light: | ID38mm Ptfe Convoluted Tubing,OD55mm Ptfe Convoluted Tubing,ID38mm convoluted ptfe hose |
||
Product Description
Rubber Cover TCWS

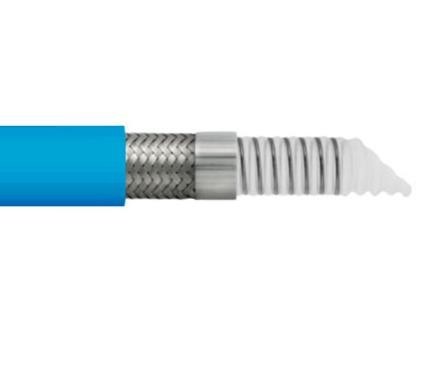

Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with EPDM vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -40°C and +150°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. EPDM vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio,and Cosmetic industry.
Certification: FDA.
| Part no. | ID | Mini OD | Tube Wall thickness | Bending radius |
Work pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCWSR010 | 3/8" | 9.5 | 22.7 | 0.75 | 25 | 110 | 440 |
| TCWSR013 | 1/2" | 12.7 | 25.7 | 0.75 | 35 | 100 | 400 |
| TCWSR016 | 5/8" | 15.9 | 29.5 | 0.75 | 45 | 85 | 340 |
| TCWSR019 | 3/4" | 19 | 33 | 0.90 | 50 | 80 | 320 |
| TCWSR025 | 1" | 25.4 | 39 | 1.00 | 70 | 60 | 240 |
| TCWSR032 | 1-1/4" | 32 | 49.7 | 1.00 | 85 | 45 | 180 |
| TCWSR038 | 1-1/2" | 38 | 55 | 1.00 | 110 | 35 | 140 |
| TCWSR051 | 2" | 50.8 | 68.5 | 1.10 | 140 | 25 | 100 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
