Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | FVSD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000 Meter/Meters (Min. Order) |
| Price: | $2.80 - $15.80 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 1000 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Size: | 1/4"~4" | Length: | 30m, 40m, 50m And 100m/roll |
|---|---|---|---|
| Thickness: | 2.0~4.5mm | Material: | PVC |
| Temp. Range: | -10°C~60°C | Processing Service: | Moulding, Cutting |
| Highlight: | 4.5mm Thick Pvc Fiber Reinforced Hose,4.5mm Thick Pvc Braided Hose Pipe,100m/roll Pvc Fiber Reinforced Hose |
||
Product Description
FOOD GRADE PVC FIBER HOSE
APPLICATIONS: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines and dispensers.

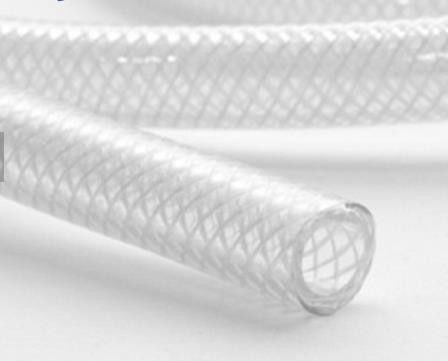

Features: flexible hose reinforced with high tenacity polyester.
Resistant to several chemicals and to weather conditions.
Colour: transparent with polyester reinforcement
Temperature range: -10°C + 60°C
Standards: FDA, EU, REACH
| Part no. | ID | OD | Work pressure | Bursting pressure | Weight | Length | |
| inch | mm | mm | bar | bar | kg/m | m | |
| FVD006 | 1/4" | 6 | 10 | 10 | 40 | 0.07 | 100 |
| FVD008 | 5/16" | 8 | 12 | 10 | 40 | 0.08 | 100 |
| FVD010 | 3/8" | 10 | 14 | 9 | 35 | 0.10 | 100 |
| FVD012016 | 1/2" | 12 | 16 | 7 | 20 | 0.12 | 50 |
| FVD012017 | 1/2" | 12 | 17 | 8 | 24 | 0.15 | 50 |
| FVD013 | 1/2" | 13 | 17 | 7 | 20 | 0.13 | 50 |
| FVD015 | 5/8" | 15 | 19 | 6 | 20 | 0.14 | 50 |
| FVD016020 | 5/8" | 16 | 20 | 6 | 20 | 0.15 | 50 |
| FVD016021 | 5/8" | 16 | 21 | 7 | 21 | 0.19 | 50 |
| FVD019023 | 3/4" | 19 | 23 | 4 | 12 | 0.17 | 50 |
| FVD019024 | 3/4" | 19 | 24 | 4 | 12 | 0.22 | 50 |
| FVD020 | 3/4" | 20 | 24 | 4 | 12 | 0.18 | 50 |
| FVD022 | 7/8" | 22 | 27 | 4 | 12 | 0.25 | 50 |
| FVD025029 | 1" | 25 | 29 | 3 | 9 | 0.22 | 50 |
| FVD025030 | 1" | 25 | 30 | 4 | 12 | 0.28 | 50 |
| FVD032 | 1-1/4" | 32 | 38 | 3 | 10 | 0.43 | 40 |
| FVD038 | 1-1/2" | 38 | 45 | 3 | 10 | 0.59 | 40 |
| FVD045 | 1-3/4" | 45 | 55 | 3 | 10 | 1.02 | 30 |
| FVD050 | 2" | 50 | 59 | 3 | 10 | 1.01 | 30 |
