Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | UCSD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 61 Meter/Meters (Min. Order) |
| Price: | $9.90 - $49.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 61 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Size: | 3/4"~4" | Length: | 61m/roll |
|---|---|---|---|
| Thickness: | 6.5~10mm | Material: | UHMWPE |
| Temp. Range: | -40℃~+ 120℃ | Processing Service: | Moulding, Cutting |
| Color: | Blue\Black | ||
| High Light: | Antistatic uhmwpe chemical hose,61m/Roll Chemical Resistance Hose,61m/Roll Chemical Transfer Hose |
||
Product Description

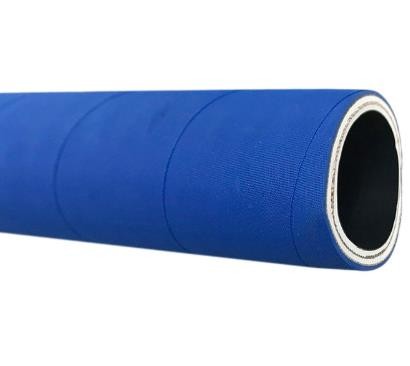

Anti-static chemical flexibility hose
Applications:
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Construction:
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C~+120 °C (-40 °F +248 °F)
Standard/Approval:
FDA 21 CFR 177.2600.
| Part no. | ID | OD | Bending radius | Work pressure | Length | ||
| inch | mm | mm | mm | psi | bar | m | |
| UCSD019 | 3/4" | 19.05 | 32.0 | 89 | 200 | 13.8 | 61 |
| UCSD025 | 1" | 25.4 | 37.3 | 100 | 200 | 13.8 | 61 |
| UCSD032 | 1-1/4" | 31.8 | 45.0 | 130 | 200 | 13.8 | 61 |
| UCSD038 | 1-1/2" | 38.1 | 52.0 | 154 | 200 | 13.8 | 61 |
| UCSD051 | 2" | 50.8 | 66.3 | 208 | 200 | 13.8 | 61 |
| UCSD063 | 2-1/2" | 63.5 | 76.1 | 252 | 200 | 13.8 | 61 |
| UCSD076 | 3" | 76.2 | 96.2 | 305 | 200 | 13.8 | 61 |
| UCSD102 | 4" | 101.6 | 120.6 | 407 | 200 | 13.8 | 61 |
