Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | NFSD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 40 Meter/Meters (Min. Order) |
| Price: | $29.00 - $129.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 100 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Meter/Meters per Week |
|
Detail Information |
|||
| Size: | 1"~4" | Length: | 40m/roll |
|---|---|---|---|
| Thickness: | 6~8mm | Material: | NBR |
| Temp. Range: | -30°C~120°C | Processing Service: | Moulding, Cutting |
| Color: | Blue | ||
| High Light: | 40m/Roll NBR Rubber Hose,40m/Roll 2 Inch Flexible Suction Hose,OD66.0mm NBR Rubber Hose |
||
Product Description

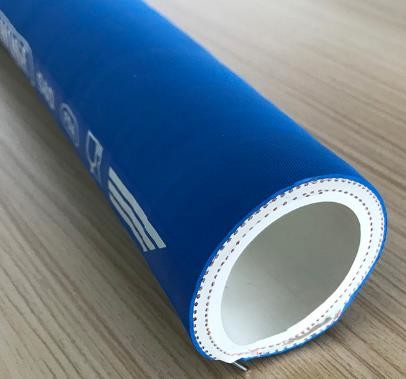

NBR Food Suction and Delivery Hose
Applications:
Suction and delivery of liquid foodstuffs such as safe fat food, milk, fruit juice, drinks, wine, oil, potable water and alcohol up to 96%. Also for liquid foodstuff tankers. Contains no phthalate.

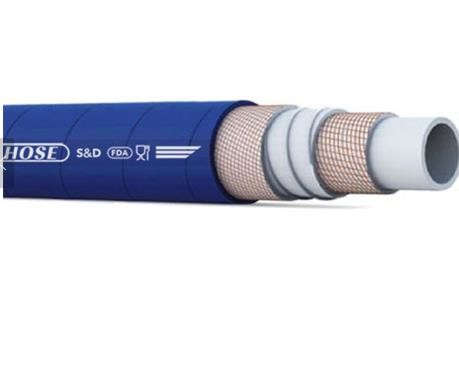

Construction:

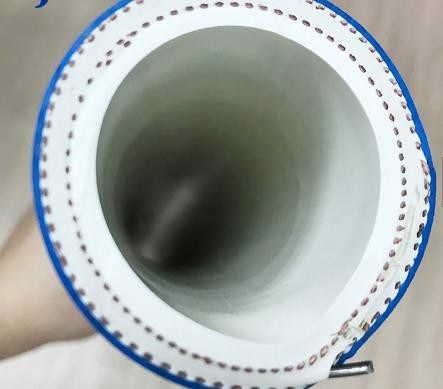

Tube: White NBR, oil resistant, smooth
Reinforcement: Synthetic textile with embedded steel helix.
Cover: Blue CSM, oil and weather resistant, fabric impression.
Temperature Range: Water: - 30℃~+ 120℃
Standard/Approval: FDA 21 CFR 177.2600
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Vacuum | Weight | Length | |
| inch | mm | mm | mm | bar | bar | bar | kg/m | m | |
| NFSD025 | 1" | 25.4 | 37.0 | 50 | 10 | 30 | 0.9 | 0.97 | 40 |
| NFSD032 | 1-1/4" | 31.8 | 44.5 | 65 | 10 | 30 | 0.9 | 1.15 | 40 |
| NFSD038 | 1-1/2" | 38.0 | 52.0 | 75 | 10 | 30 | 0.9 | 1.32 | 40 |
| NFSD051 | 2" | 50.8 | 66.0 | 125 | 10 | 30 | 0.9 | 2.33 | 40 |
| NFSD064 | 2-1/2" | 63.5 | 79.5 | 160 | 10 | 30 | 0.9 | 2.5 | 40 |
| NFSD076 | 3" | 76.2 | 92.0 | 225 | 10 | 30 | 0.9 | 3.60 | 40 |
| NFSD089 | 3-1/2" | 89.0 | 106.0 | 320 | 10 | 30 | 0.9 | 4.10 | 40 |
| NFSD102 | 4" | 101.6 | 118.5 | 400 | 10 | 30 | 0.9 | 4.5 | 40 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
