Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | BFSD |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 40 Meter/Meters (Min. Order) |
| Price: | $29.80 - $132.80 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 40 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Size: | 1"~4" | Length: | 40m/roll |
|---|---|---|---|
| Thickness: | 6~8mm | Material: | BIIR |
| Temp. Range: | -30°C~120°C | Processing Service: | Moulding, Cutting |
| Color: | Blue | ||
| High Light: | 89.0mm ID Food Grade Suction Hose,89.0mm Suction Hose 1.5 Inch,0.9bar Food Grade Suction Hose |
||
Product Description

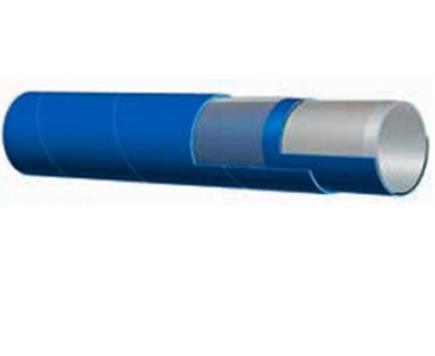

BIIR Food Suction and Delivery Hose
Applications:
Suction and delivery of liquid foodstuffs such as fruit juice, drinks, wine, potable water and alcohol up to 96%. Also for liquid foodstuff tankers. Contains no phthalate.
Construction:
Tube: White BIIR, oil resistant, smooth
Reinforcement: Synthetic textile with embedded steel helix.
Cover: Blue CSM, oil and weather resistant, fabric impression.
Temperature Range: Water: - 30℃~+ 120℃
Standard/Approval: FDA 21 CFR 177.2600.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Vacuum | Weight | Length | |
| inch | mm | mm | mm | bar | bar | bar | kg/m | m | |
| BFSD025 | 1" | 25.4 | 37.0 | 50 | 10 | 30 | 0.9 | 0.97 | 40 |
| BFSD032 | 1-1/4" | 31.8 | 44.5 | 65 | 10 | 30 | 0.9 | 1.15 | 40 |
| BFSD038 | 1-1/2" | 38.0 | 52.0 | 75 | 10 | 30 | 0.9 | 1.32 | 40 |
| BFSD051 | 2" | 50.8 | 66.0 | 125 | 10 | 30 | 0.9 | 2.33 | 40 |
| BFSD064 | 2-1/2" | 63.5 | 79.5 | 160 | 10 | 30 | 0.9 | 2.5 | 40 |
| BFSD076 | 3" | 76.2 | 92.0 | 225 | 10 | 30 | 0.9 | 3.60 | 40 |
| BFSD089 | 3-1/2" | 89.0 | 106.0 | 320 | 10 | 30 | 0.9 | 4.10 | 40 |
| BFSD102 | 4" | 101.6 | 118.5 | 400 | 10 | 30 | 0.9 | 4.5 | 40 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
